High performance industrial products for every cutting and gouging need

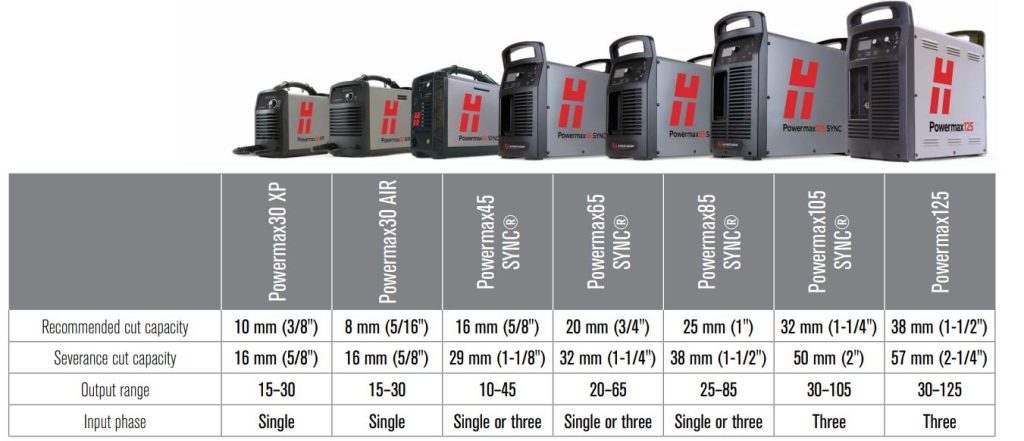

Hypertherm’s Powermax line of products consists of seven highly portable air plasma systems for hand or automated cutting and gouging of any electrically conductive metal. With a severance cut capacity range from 16mm at 30 A to 57mm at 125 A, Powermax systems will help you get your work done faster, easier, more reliably and at lower cost.

Powermax 30 XP

The Powermax30XP delivers high performance in a compact, portable package. A system that is designed to plug into 120 or 240v power. The system allows simple plug in and attach work clamp then you are ready to cut. The fast cutting speeds and superior cut quality of the powermax plasma’s enables you to finish your job quicker.

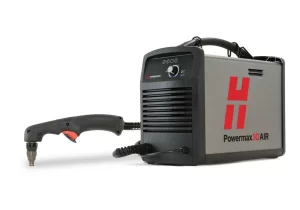

Powermax 30 Air

Are you looking for a highly portable easy to use system? The powermax 30 is for you. The smallest in the class with a built in compressor anywhere with single phase power and you can cut with the powermax 30 air. You will be able to start and finish your job quicker.

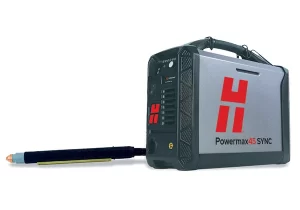

Powermax 45

The new Powermax 45xp our best selling system. The Powermax 45 is the most versatile and portable machine on the market. It cuts and gouges with high precision like spot weld removal and marking too. The 45 is great for both your mechanized cnc or your handheld cutting

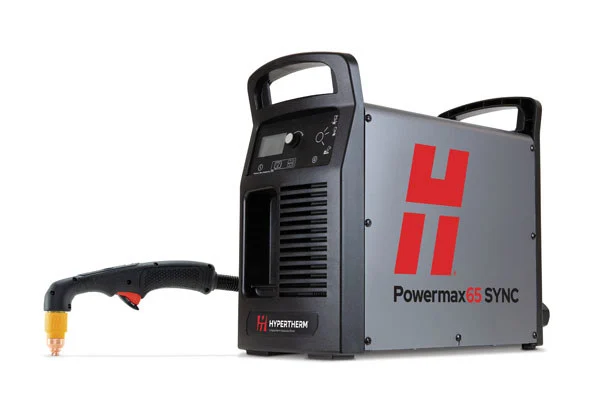

Powermax 65

Offering the latest technological innovations, like Smart Sense™ technology to automatically adjust the gas pressure, the Powermax65 helps you do more than ever before. Duramax™ torch styles provide greater versatility and enable operators to select the right tool for the job.

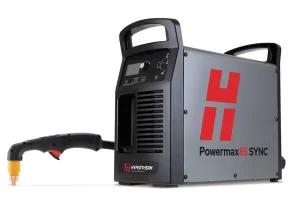

Powermax 85

The premier system for cutting 25 mm, the Powermax85 has the same features and options as the Powermax65, but with more power from a max output current of 85 amps. A variety of Duramax torch styles provide exceptional versatility for hand cutting or gouging, portable automation, X-Y table and robotic cutting or gouging.

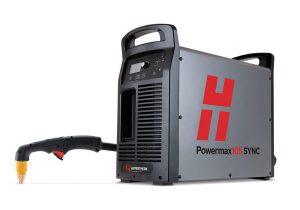

Powermax 105

The Powermax105 delivers superior cut capabilities on 32 mm thick metals. It has the duty cycle and industrial performance necessary for tough cutting and gouging jobs. Seven Duramax torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging.

Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece.

Powermax 125

With the maximum power and performance for air plasma, the new Powermax125 cuts fast and thick. A 100% duty cycle, a 25 mm mechanized pierce capability, and a gouging metal removal rate of 12.52 kg/hr make the Powermax125 the tool for any industrial cutting and gouging job. Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece.

MaxPro 200

The MAXPRO200 plasma cutting system achieves impressive cut speeds, consistent cut quality and exceptional consumable life with air or oxygen plasma gas. Optimized cutting parameters are automatically set and controlled in one step for easy operation. Engineered for heavy-duty, high capacity mechanized and handheld cutting and gouging, the MAXPRO200 delivers reliable performance across a wide range of industrial applications. Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the work piece.
